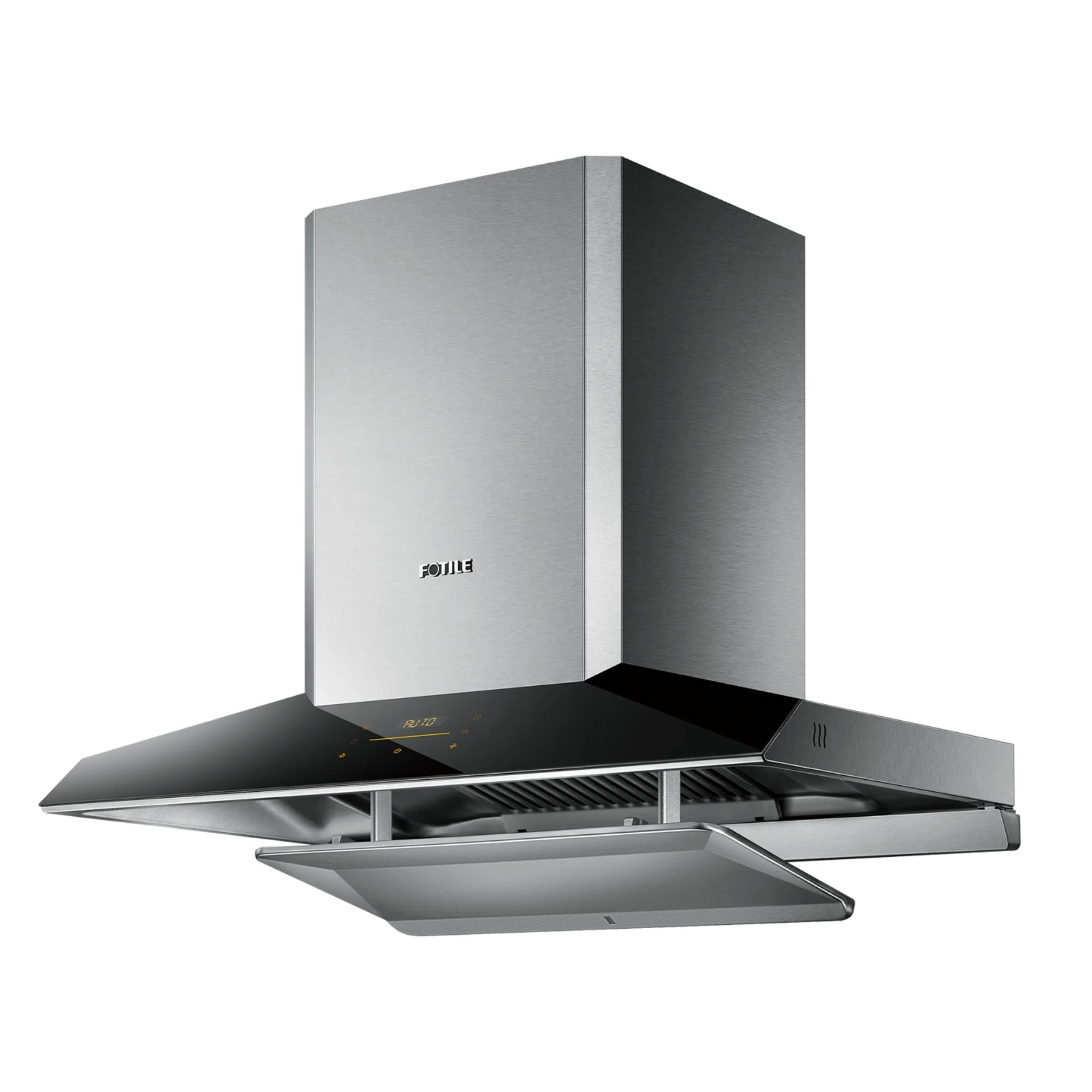

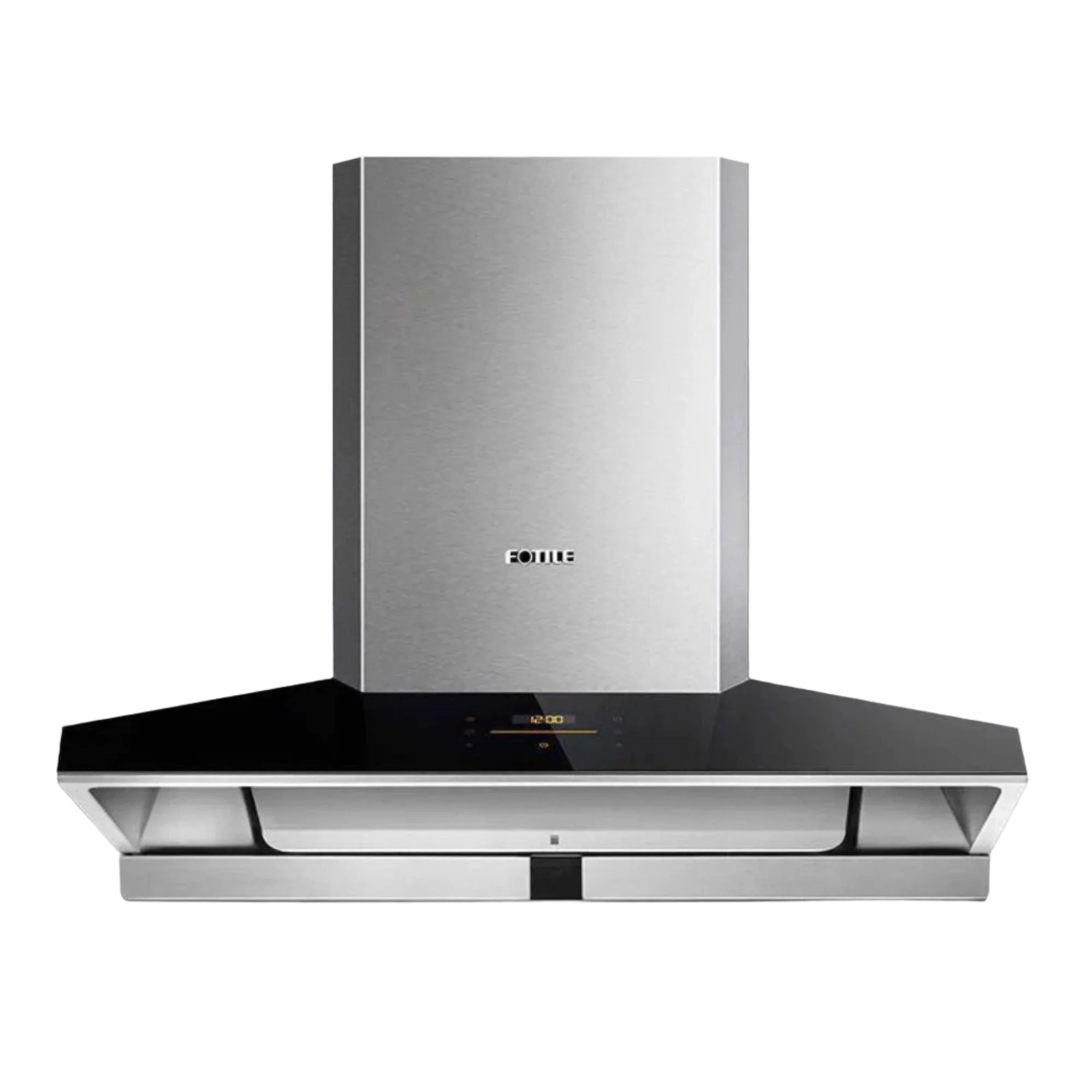

36″ Wall Mount Perimeter Vent Series | EMG9030
$2,679.00

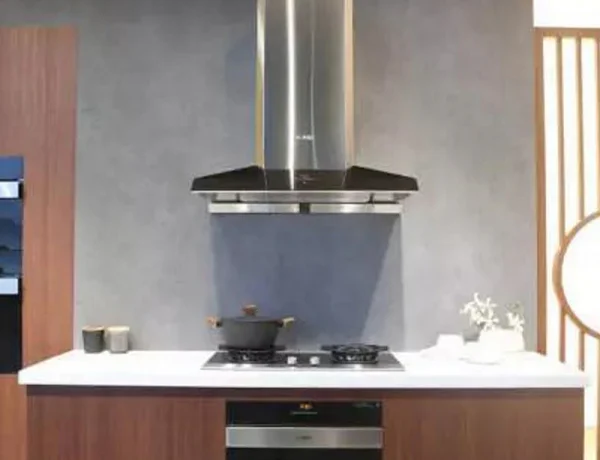

FOTILE’s Perimeter Vent Series range hoods are among our largest and most powerful wall mounted range hoods. They’re wall-mounted with a robust, modern profile well-suited for spacious kitchens and larger cooktops. Additionally, their combination of black tempered glass and stainless steel make them a stylish addition to any kitchen decor.
The FOTILE EMG9030 36” wall mount range hood features an exceptionally powerful DC motor for smooth ventilation and smoke extraction capability. You can also delay shutoff for up to 10 minutes, allowing you to effortlessly clear your home of lingering odors and grime even after you’ve finished your meal.
This model for these wall-mounted range hoods also includes the following features:
- Intelligent self-adjusting speed based on the volume of smoke and odors in your kitchen
- Intelligent air management system automatically detects and exhausts harmful gases
- 98% odor reduction rate and 92% grease separation rate
- Max EQUIV. CFM: 1100*
*Please note: The actual product color may vary slightly from the images shown due to differences in lighting, screen settings, and product finishes.

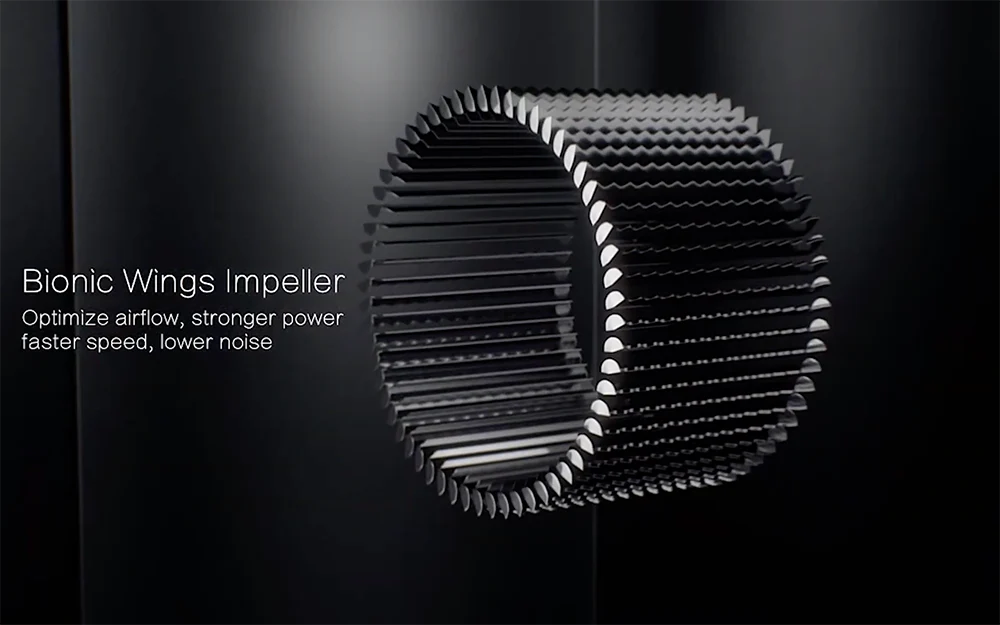

WhisPower System
FOTILE’s WhisPower Technology uses the Venturi effect to vent up to 1,100 cubic feet per minute (CFM) of air from your cooking space. The Venturi effect describes air’s tendency to move faster through narrower spaces.
This effect creates additional suction to make the WhisPower system more powerful and efficient without the need for large, noisy fans. The result is a whisper-quiet system that keeps your space cooler, cleaner, and free of odors.

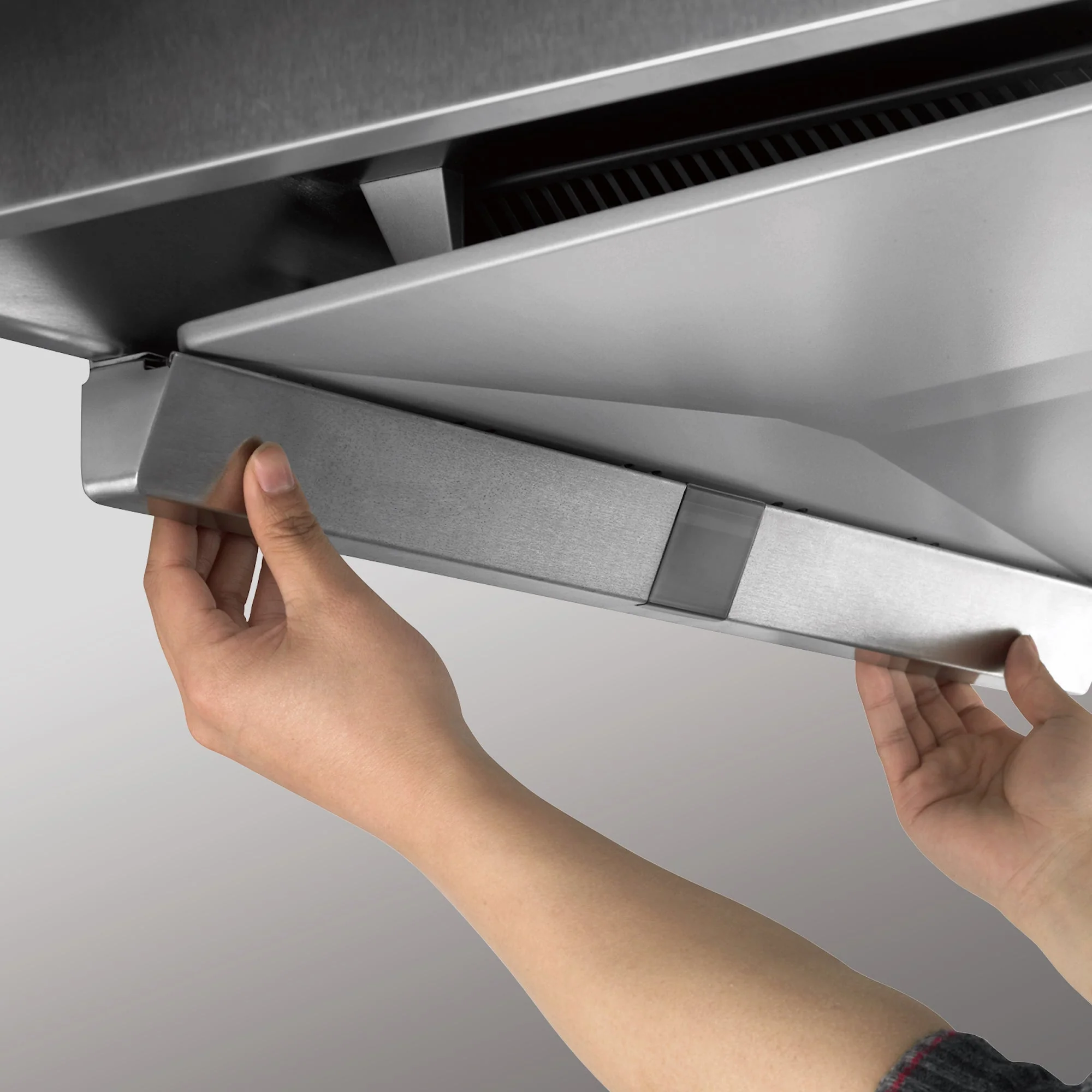

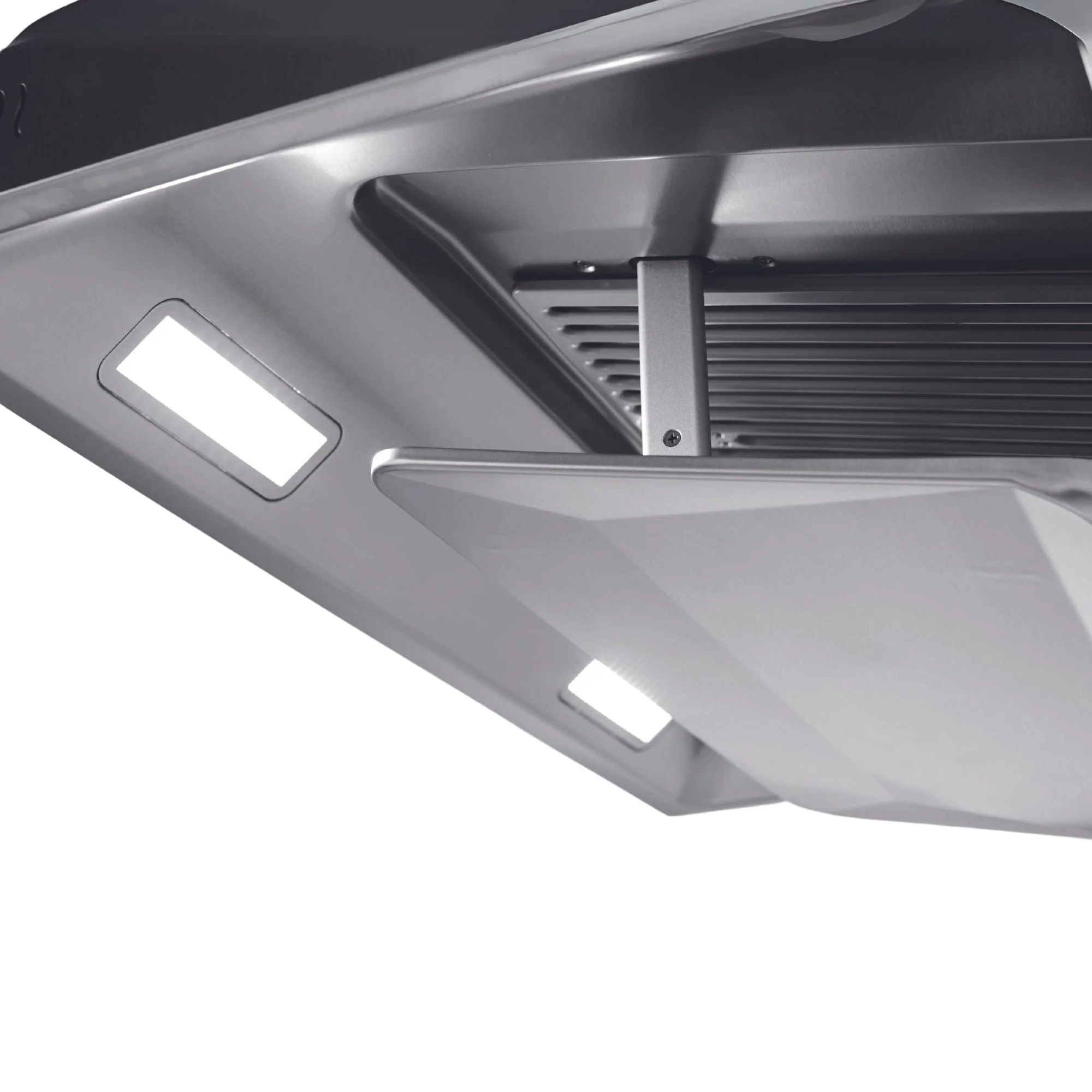

Auto-Adjusted Capture-Shield Technology
We’ve boosted our Capture-Shield Technology in the EMG9030 by making it auto adjustable. You can now lower your range hood’s capture shield technology to eliminate a higher percentage of cooking fumes.

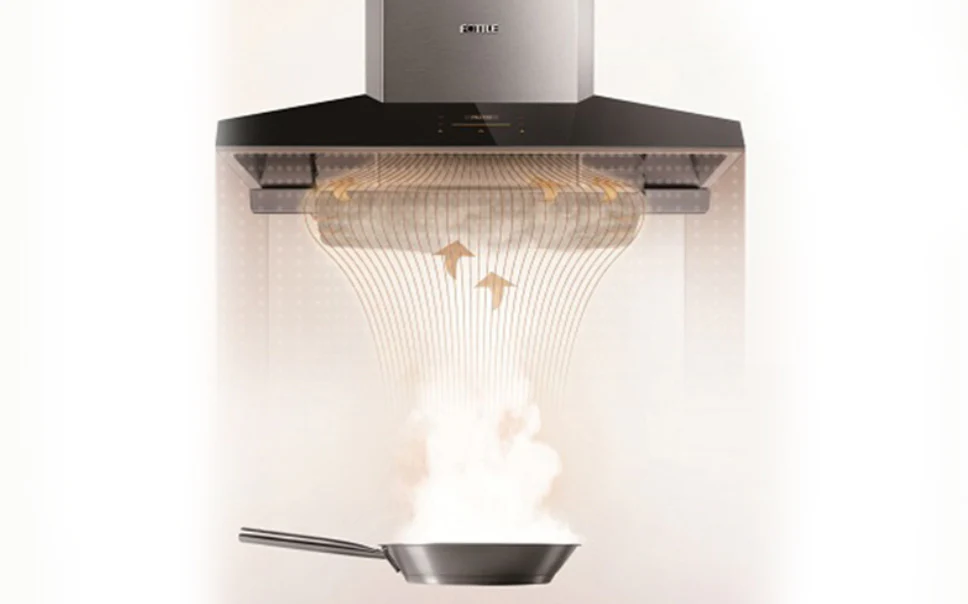

Our Capture-Shield Plates help quietly and efficiently filter hot, oily air out of your kitchen by engaging the Coanda Effect between your stovetop and range hood. The Coanda Effect is when fluid—such as warm, heavy air—naturally clings to and flows along smooth surfaces.
The Capture-Shield Plates are specifically designed to use this effect, which channels dirty air in a fast, continuous stream away from the cooking surface, keeping you cooler and more comfortable when preparing meals.
Easy to Clean

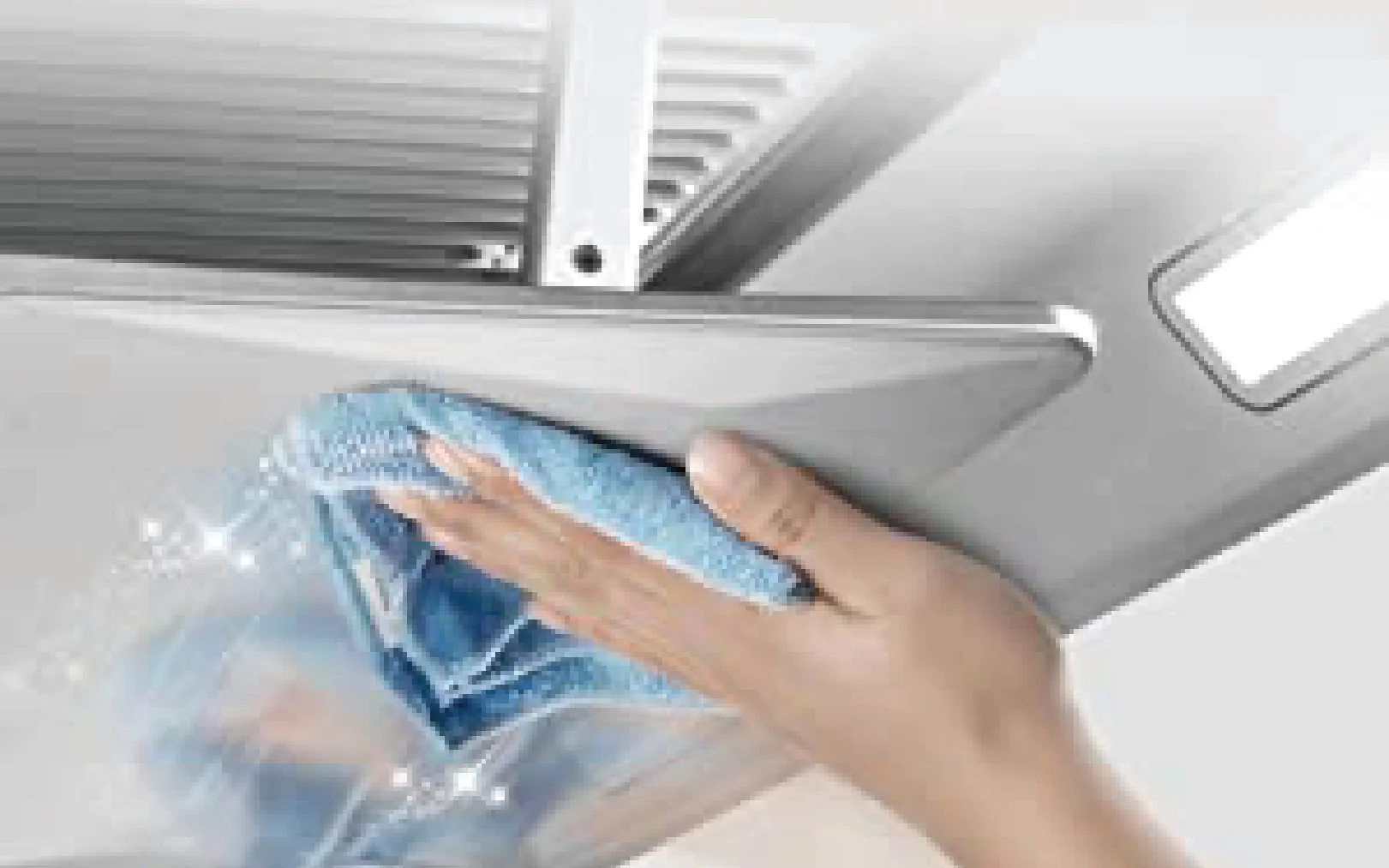

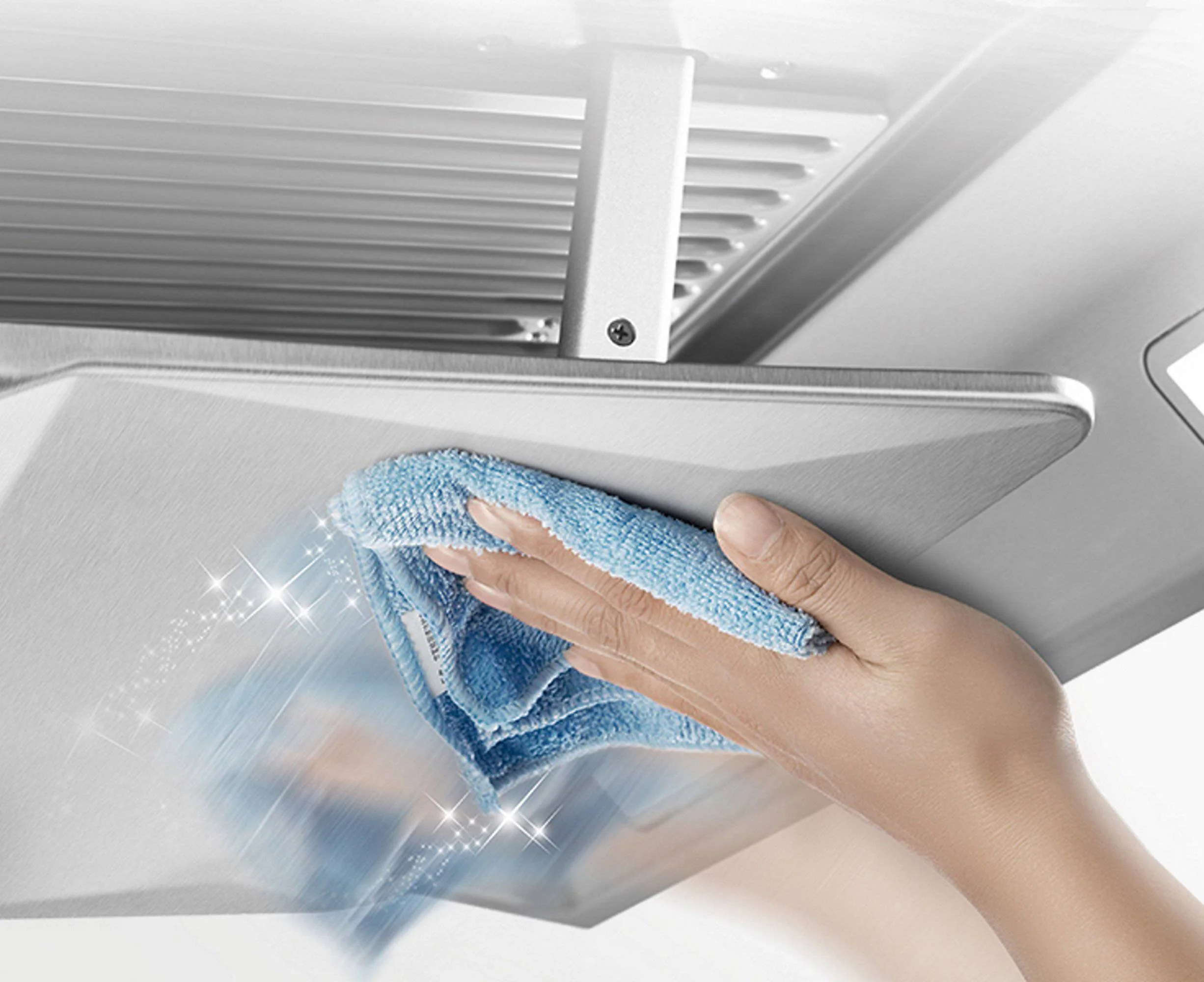

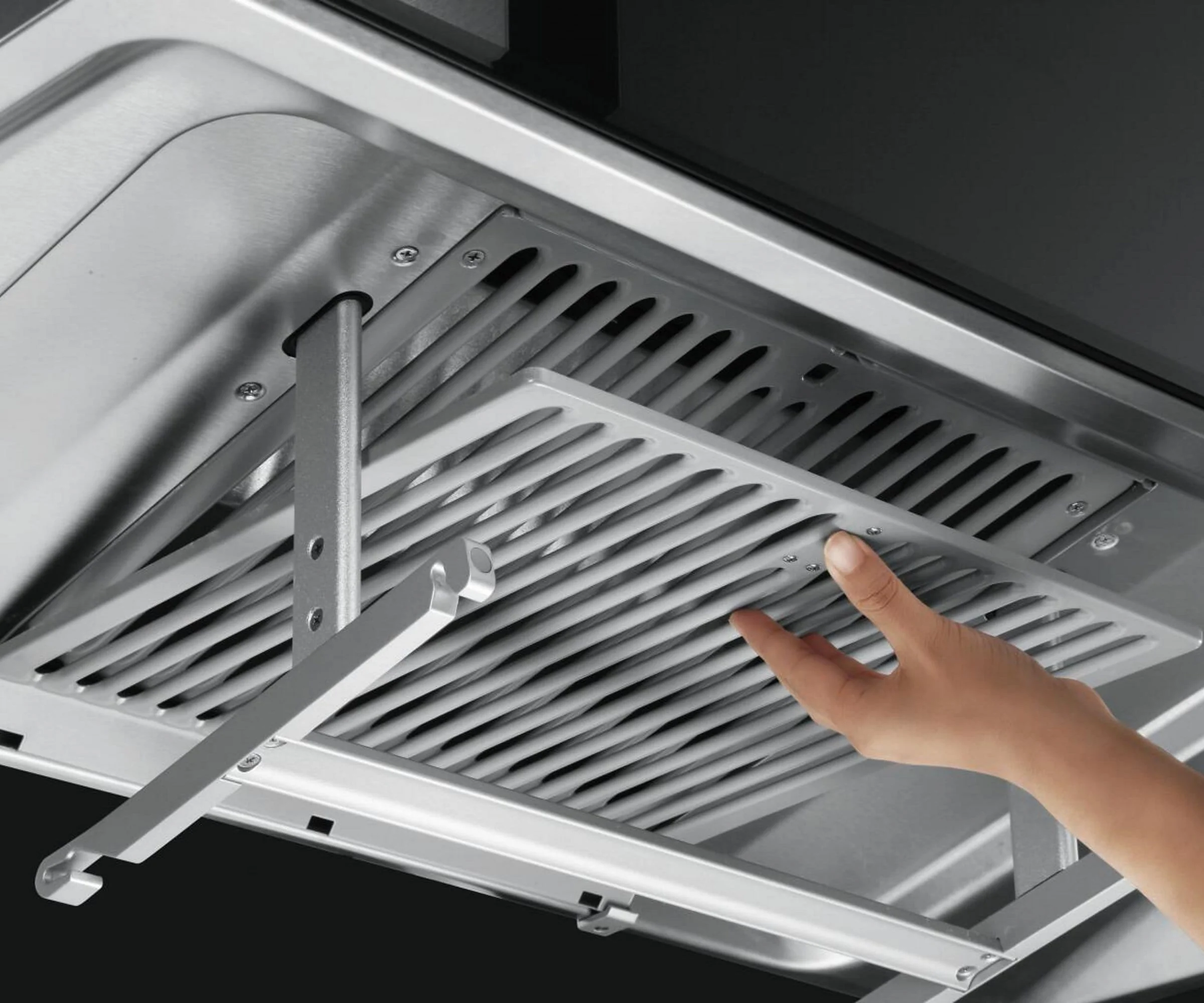

Even the most powerful range hood collects grease and grime over time. With our Easy Touch Cleaning Mode, you can quickly and efficiently clean the suction plate and smoke hatch’s flat surfaces on your EMG9030 wall mounted range hood.
Regular cleanings keep your range hood in good condition, ensuring it’s removing the maximum amount of harmful vapors and unpleasant odors from your home.
More Features
In addition to its sleek and sturdy design, powerful-yet-quiet fans, and easily-cleaned Capture Shield plates, we’ve added a few more convenient and useful features to FOTILE range hood products like the EMG9030.
Intelligent air management system to capture and diffuse harmful vapors produced during cooking

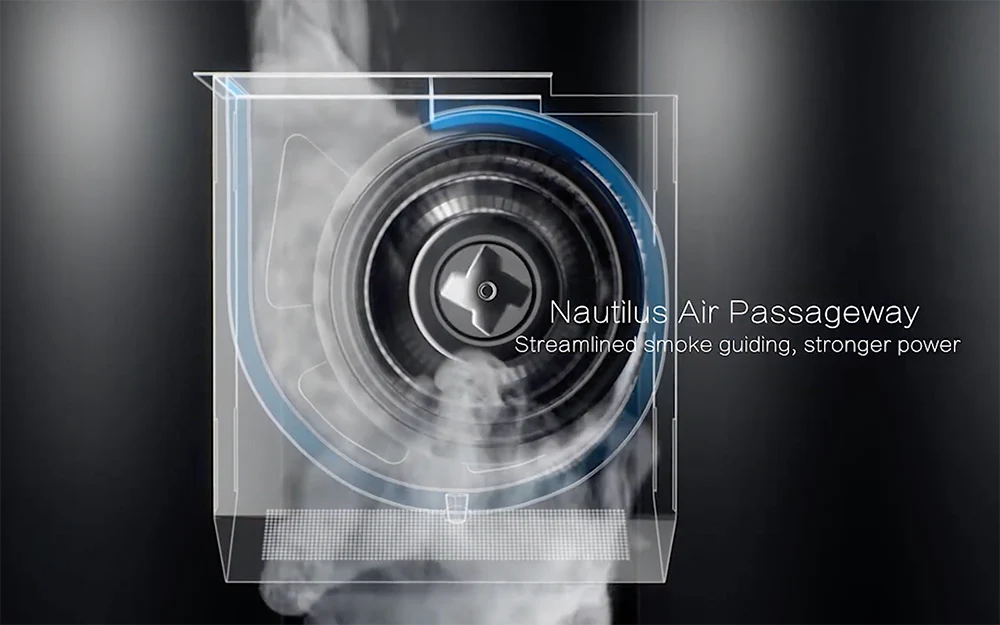

Patent nautilus air passageway encourages faster, more efficient smoke extraction
Patent nautilus air passageway encourages faster, more efficient smoke extraction
Auto turbo system to maximize extraction capacity

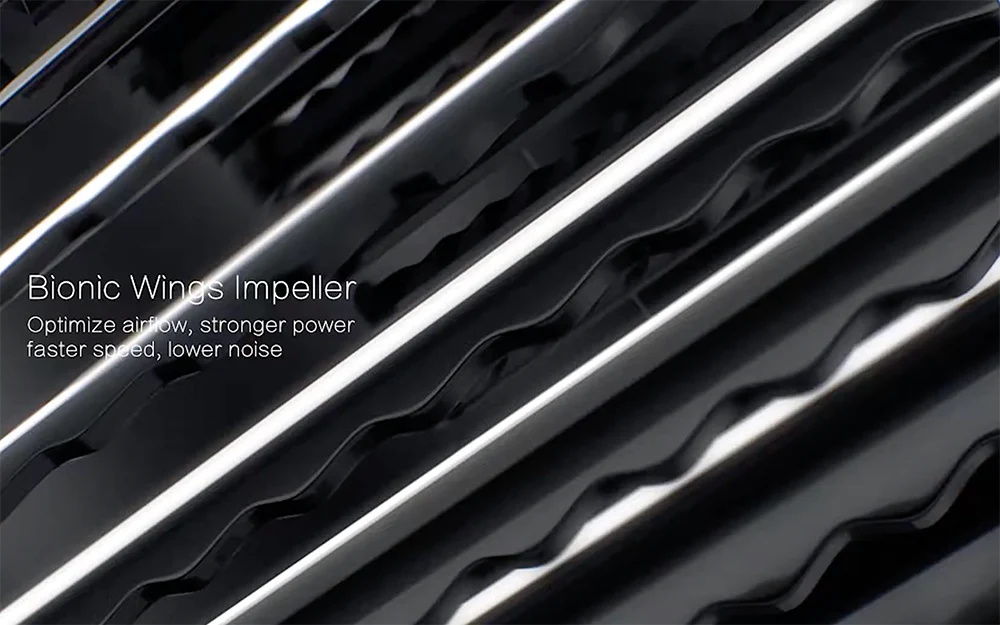

FOTILE’s strong motors for smoother, more powerful ventilation
Delay shutoff function to help clear all of the smoke and odors from your kitchen after cooking
Specifications
| Model | EMG9030 |
|---|---|

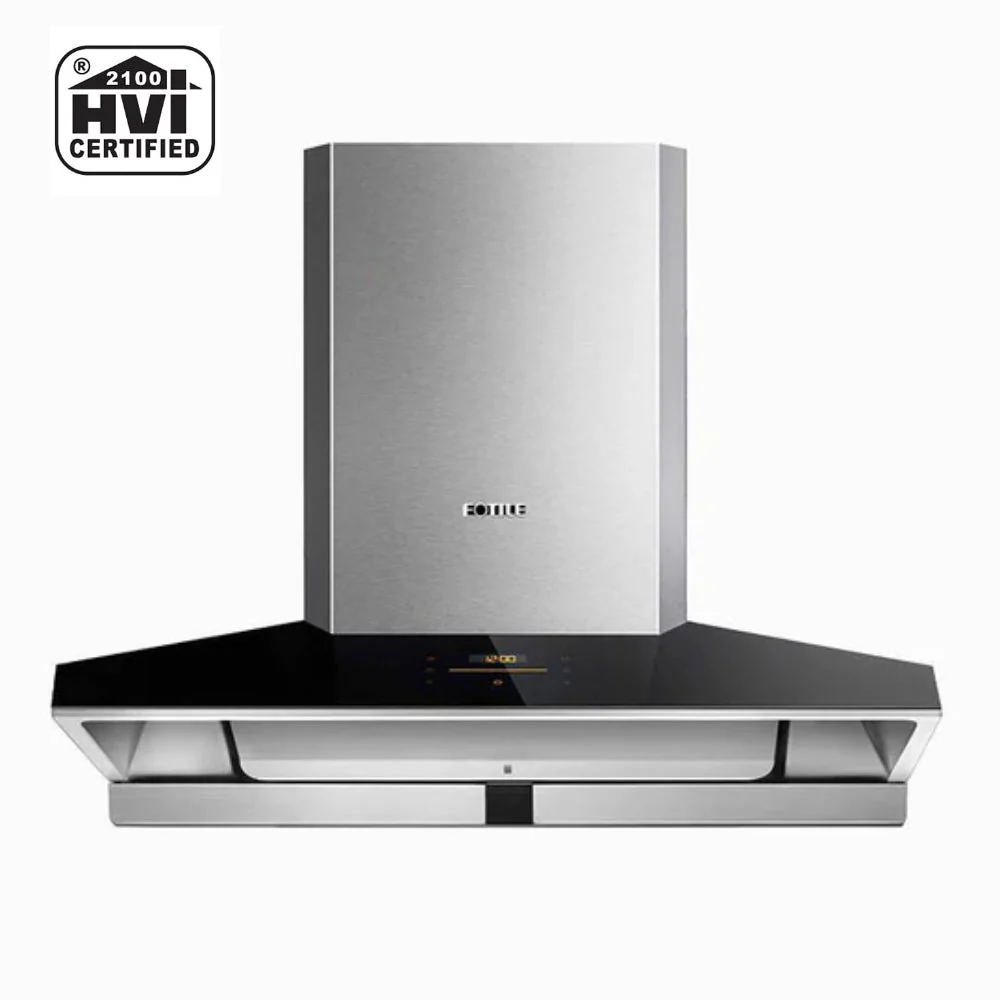

| Certification | ETL, HVI, CEC |

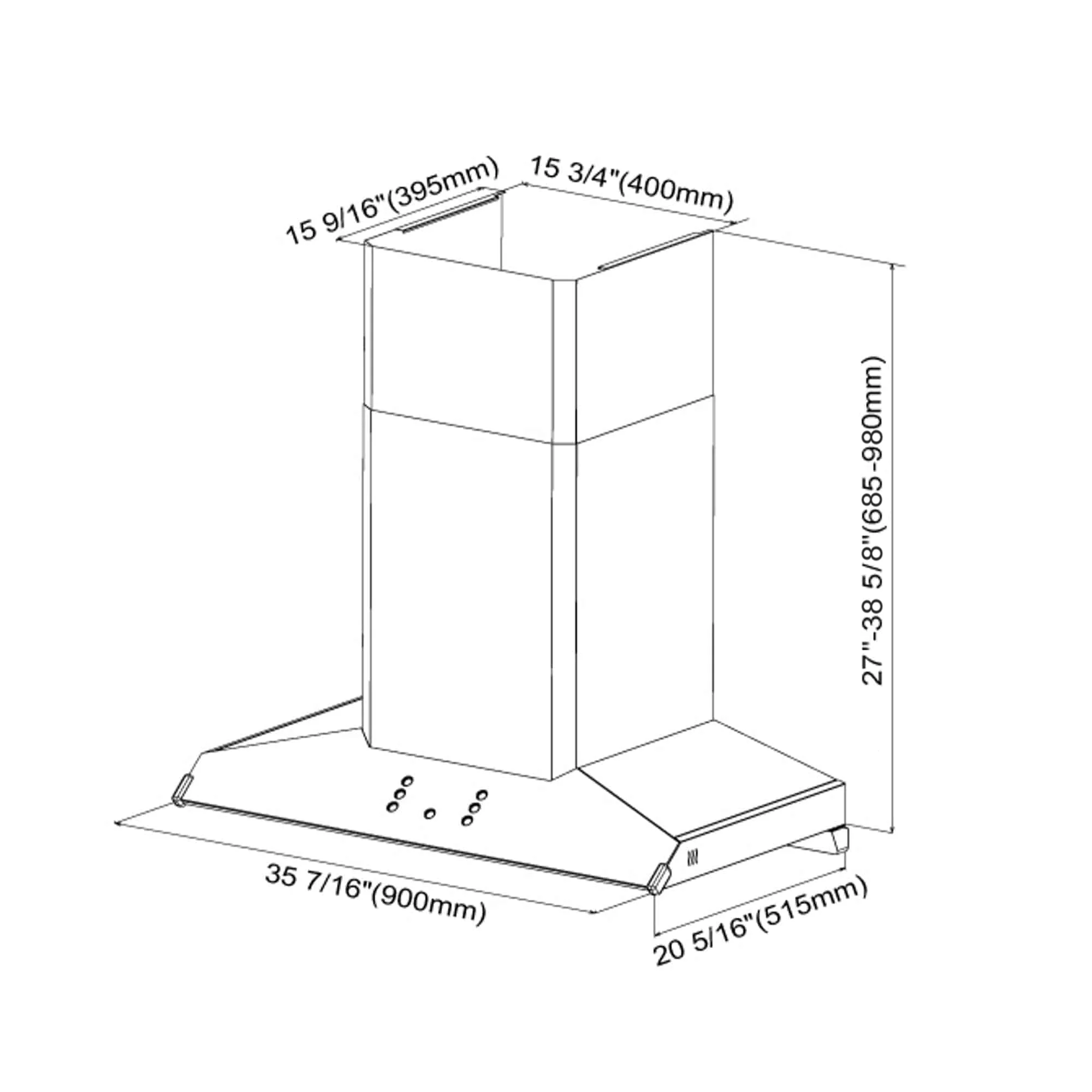

| Product Dimensions (WxDxH) (inch) | 35 7/16" x 20 5/16" x 27" - 38 5/8" |
| Power Supply(V/Hz) | 120V/60Hz |
| Max Static Pressure(Pa) | 540Pa |
| Speed Setting | 3 + Auto |
| Duct Size (inch) | 6" Round (Top Vented) |

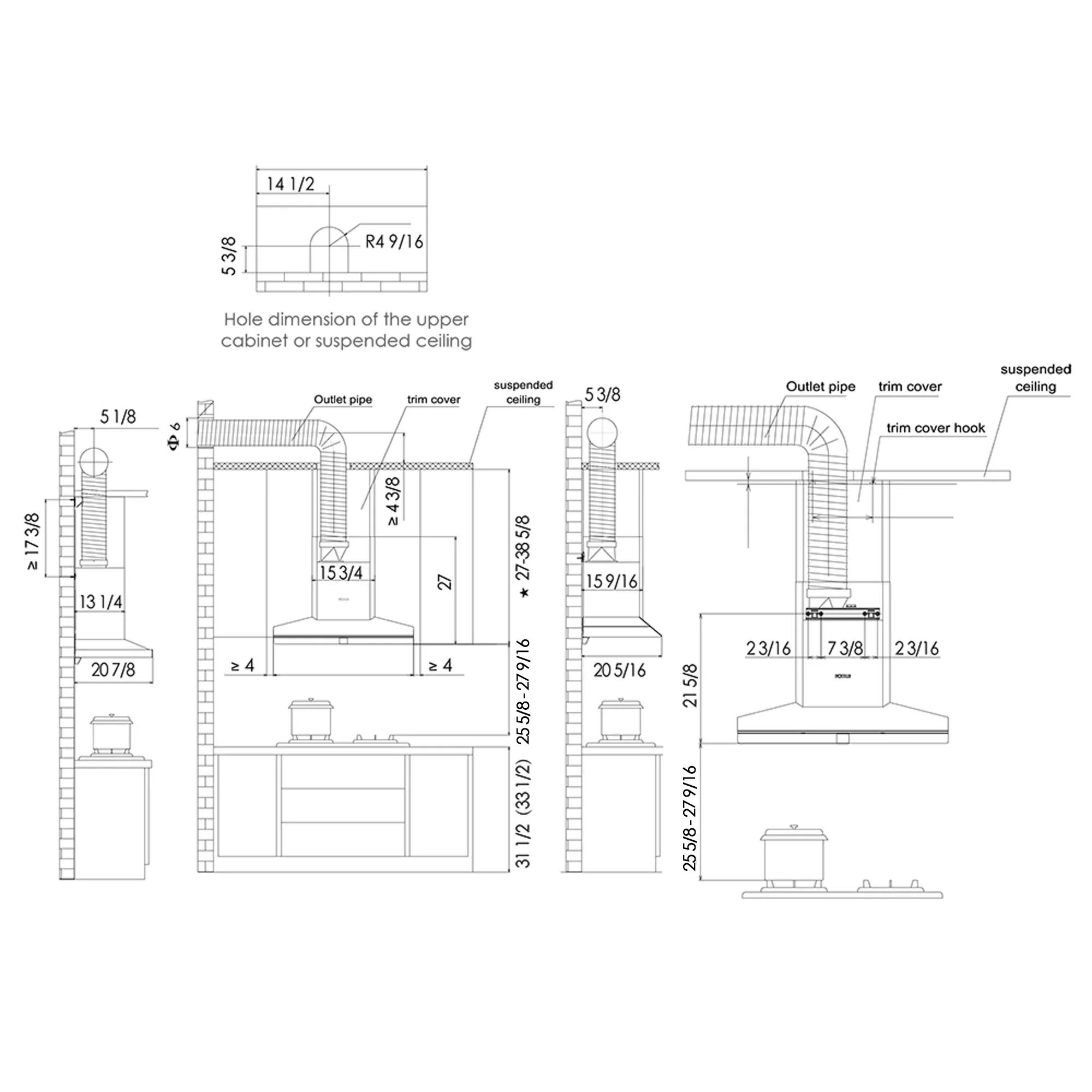

| Recommended Mounting Height | 25.63” to 27.56” (from cooktop to the bottom of cabinet) |
ALL SPECS
| Max EQUIV. CFM | 1100* |
|---|---|
| CFM (HVI) | 280 / 420 / 520 / 660 |
| Noise Level (sones) | 1.2 / 3.5 / 5.5 / 7.5 |
| Noise Level (dB) | 40.5 / 49.5 / 51.5 / 56.5 |
| Illumination (W) | 2W × 2 (LED) |
| Night Mode Lighting | N |
| Motor Power | 262W |
| Motor | DC Motor |
| Oil Cup | One Oversized Oil Cup |
| Oil Filter | Removable & Dishwasher Safe |
| Capture Shield | Auto Adjustable / Patent 2.0 Gen |
| Control Type | Touch |
| Delay Shutoff | 2/5/10 mins |
| Screen Lock | N |
| Intelligent Self-Adjusting | Y |
| Boost (Turbo) Mode | Y |
| CAT (CFM Adjustment Tech) | N |
| Intelligent Air Management | Y |
| Oil Filtration Rate | 92% |
| Odor Elimination Rate | 98% |
| Installation | Wall Mount |
| Duct Type | Vertical |
| Net Weight (lb) | 76 |
| Gross Weight (lb) | 95.5 |
| Packing-Box Size(WxDxH) (inch) | 39 5/8" × 29 3/8" × 24 1/4" |
| Accessories Included | Duct Kit, Unit Bracket, Capture Shield, Decorative Cover, Decorative Cover Bracket, Oil Cup |
| Optional Accessories | Extended Decorative Cover |
| Warranty | 5-year Limited Warranty (2-year Labor, 5-year Parts, Lifetime Motor) |
| *FOTILE Equivalent CFM is a higher CFM rating due to our filter-less technology that combines WhisPower Motors and Capture-Shield design. By utilizing this technology, FOTILE applies the Coanda Affect by accelerating smoke extraction and grease separation, and increasing our Capture Efficiency. This enables FOTILE to cover a larger cooktop surface (7.2 Sq Ft) and achieve a 92% oil filtration rate, and 98% odor elimination rate, leaving your kitchen smoke free and smelling fresh. |
| WARNING: This product can expose you to chemicals including vinyl chloride, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
