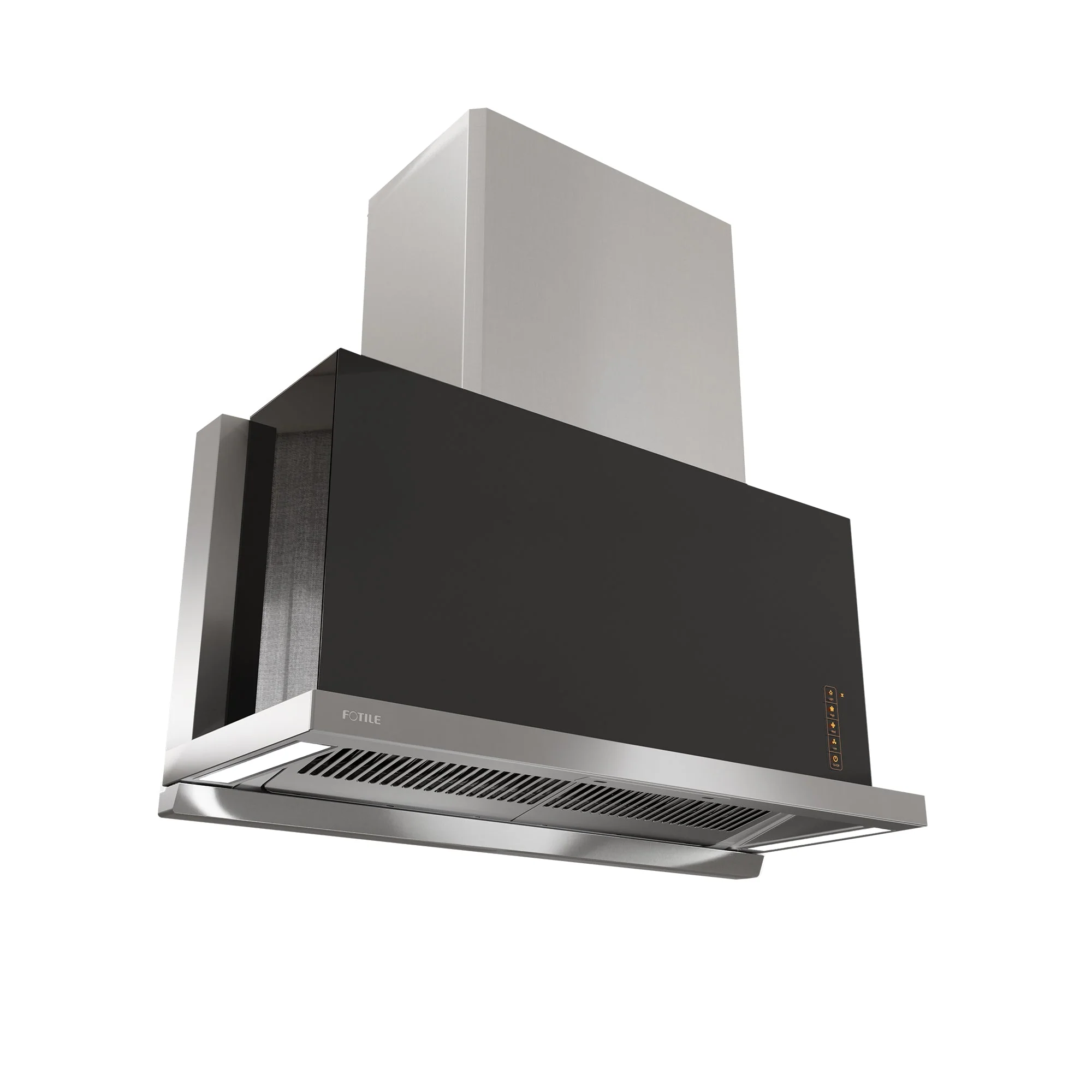

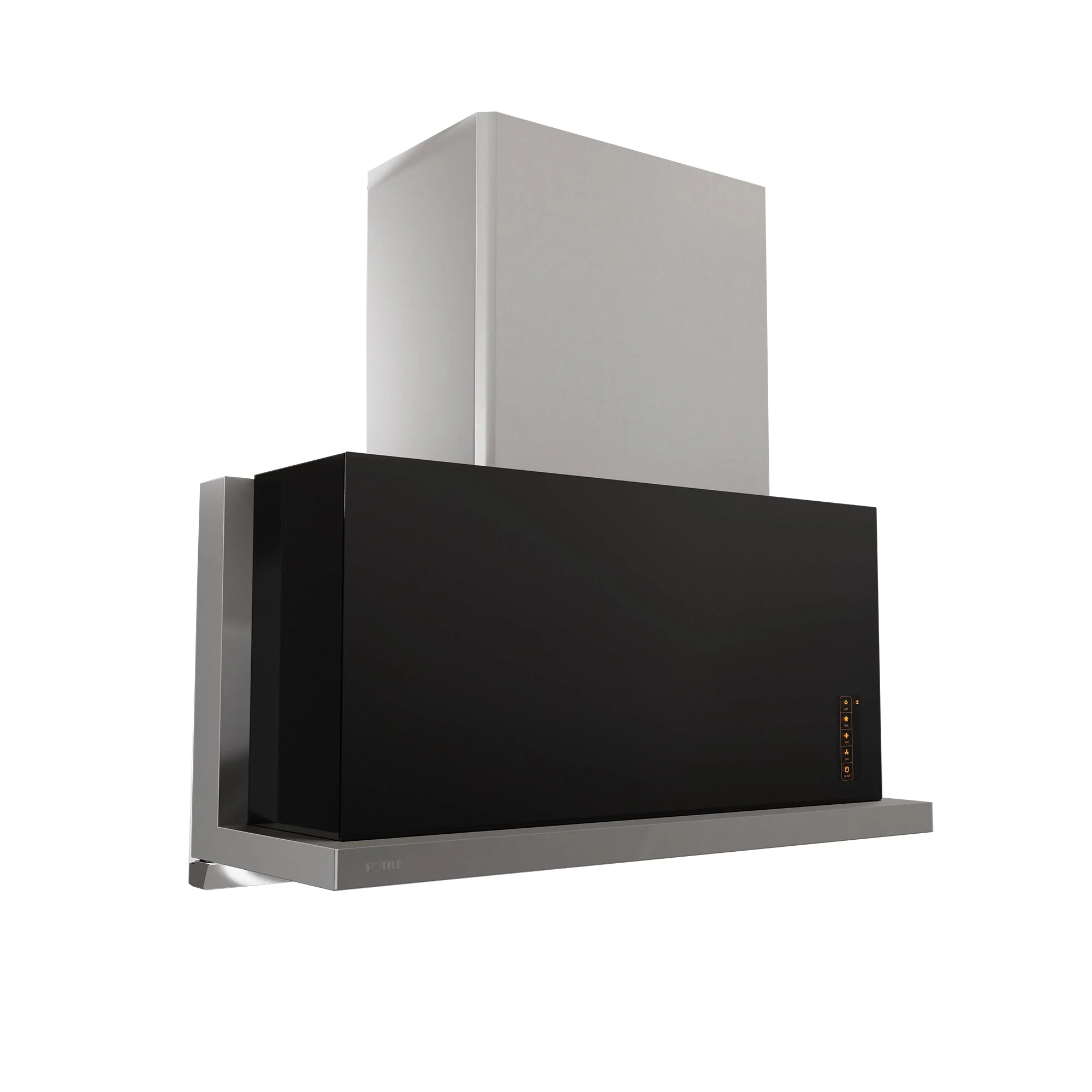

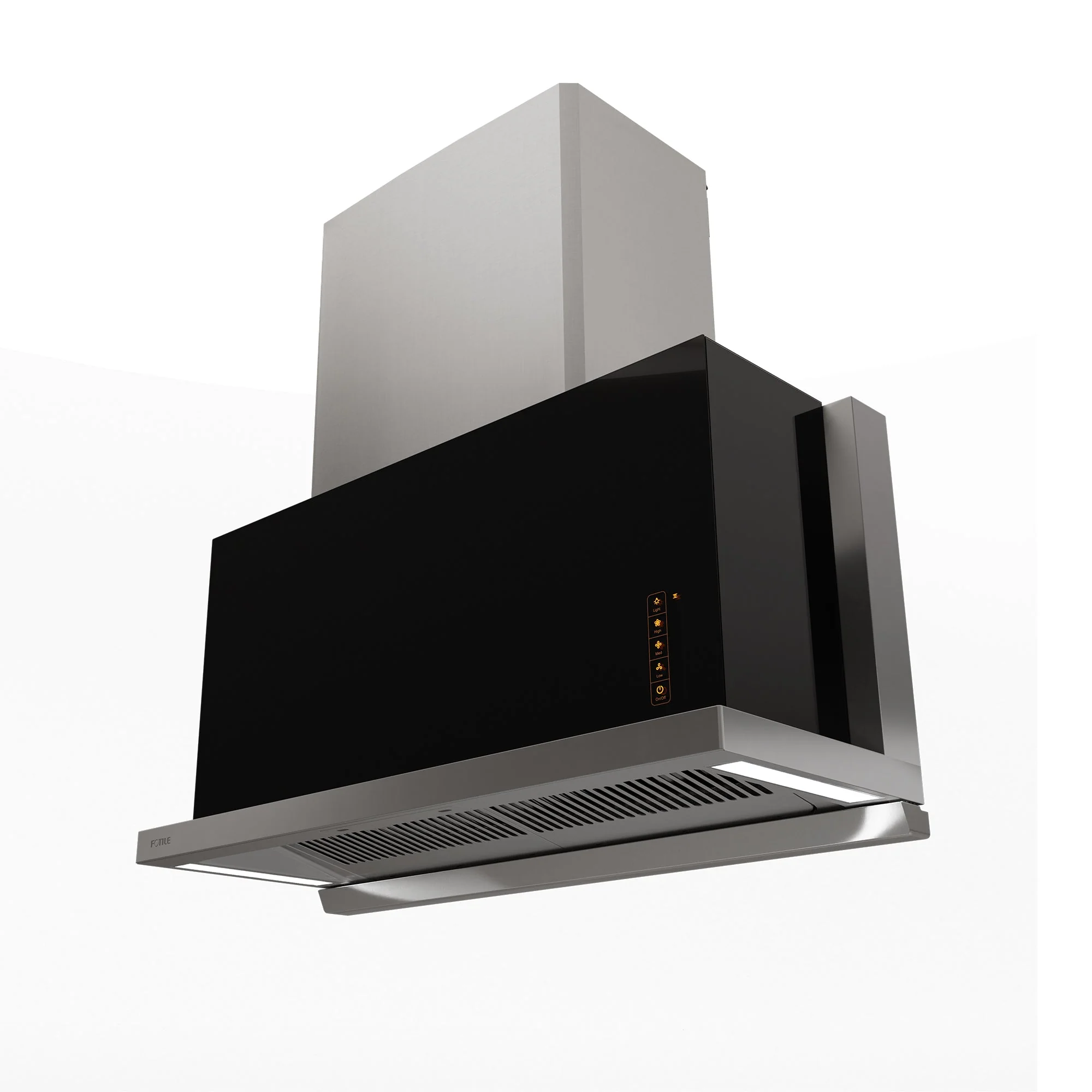

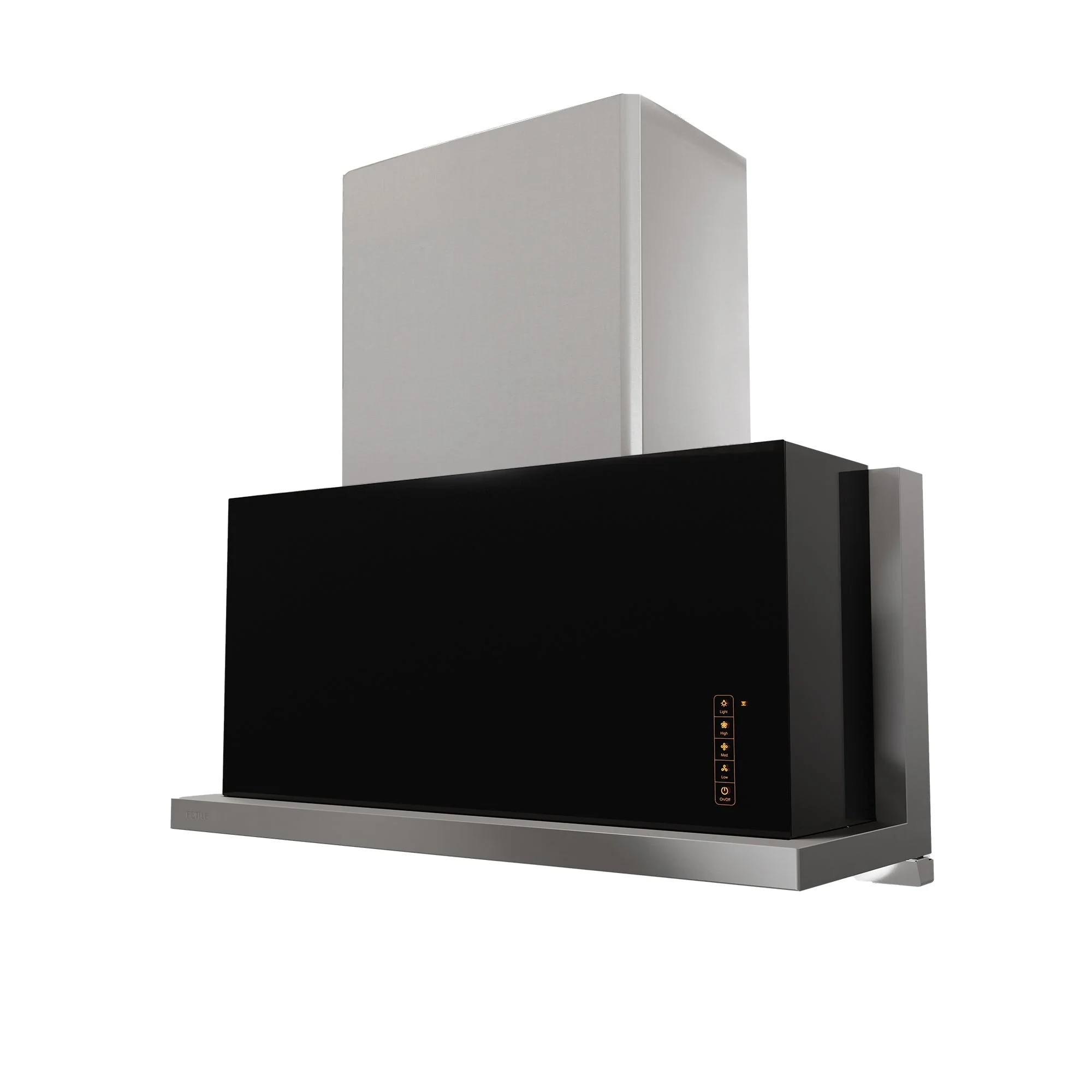

36″ Insert Hood Series | BIG3610
$2,999.00
– Permanent Magnet Synchronous Motor (PMSM) – Higher performing motor compared to other DC motors. Providing higher torque, efficiency, & reliability.
– Automatic Lower – Simply wave to lower the range hood, ensuring optimal smoke capture efficiency with closer proximity
– Versatile Installation – The built-in design offers a hidden appearance when not in use, providing a high-end and unobtrusive look to your kitchen
– Motion Activation – Effortlessly summoned design activated by motion or a wave.
– Sync Function with Cooktops – Simplifies cooking tasks for quicker and more convenient operation. Pairing is a seamless process, ensuring a stable connection.
*Please note: The actual product color may vary slightly from the images shown due to differences in lighting, screen settings, and product finishes.

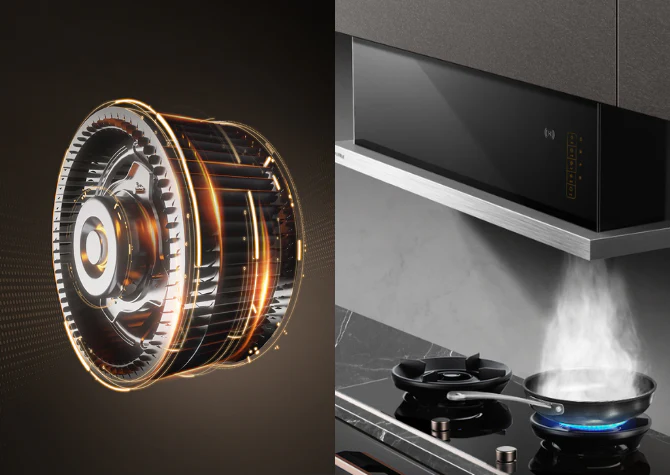

Elegance In Motion: PMSM (Permanent Magnet Synchronous Motor)
Experience superior performance with our PMSM motor, surpassing conventional asynchronous DC motors.
Elevating torque and efficiency, this sophisticated motor ensures heightened reliability without compromising ambient noise levels, whether operating at high or low speeds.

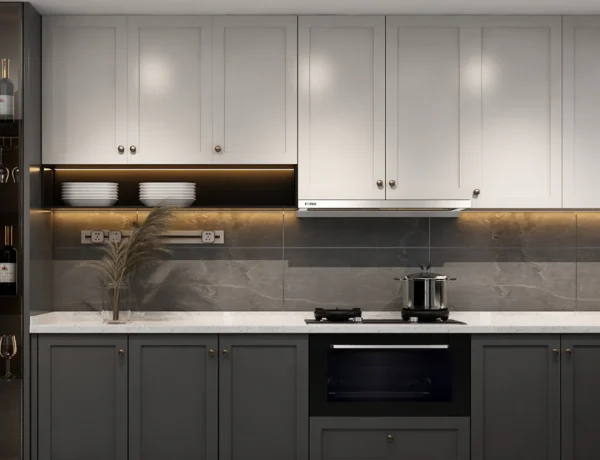

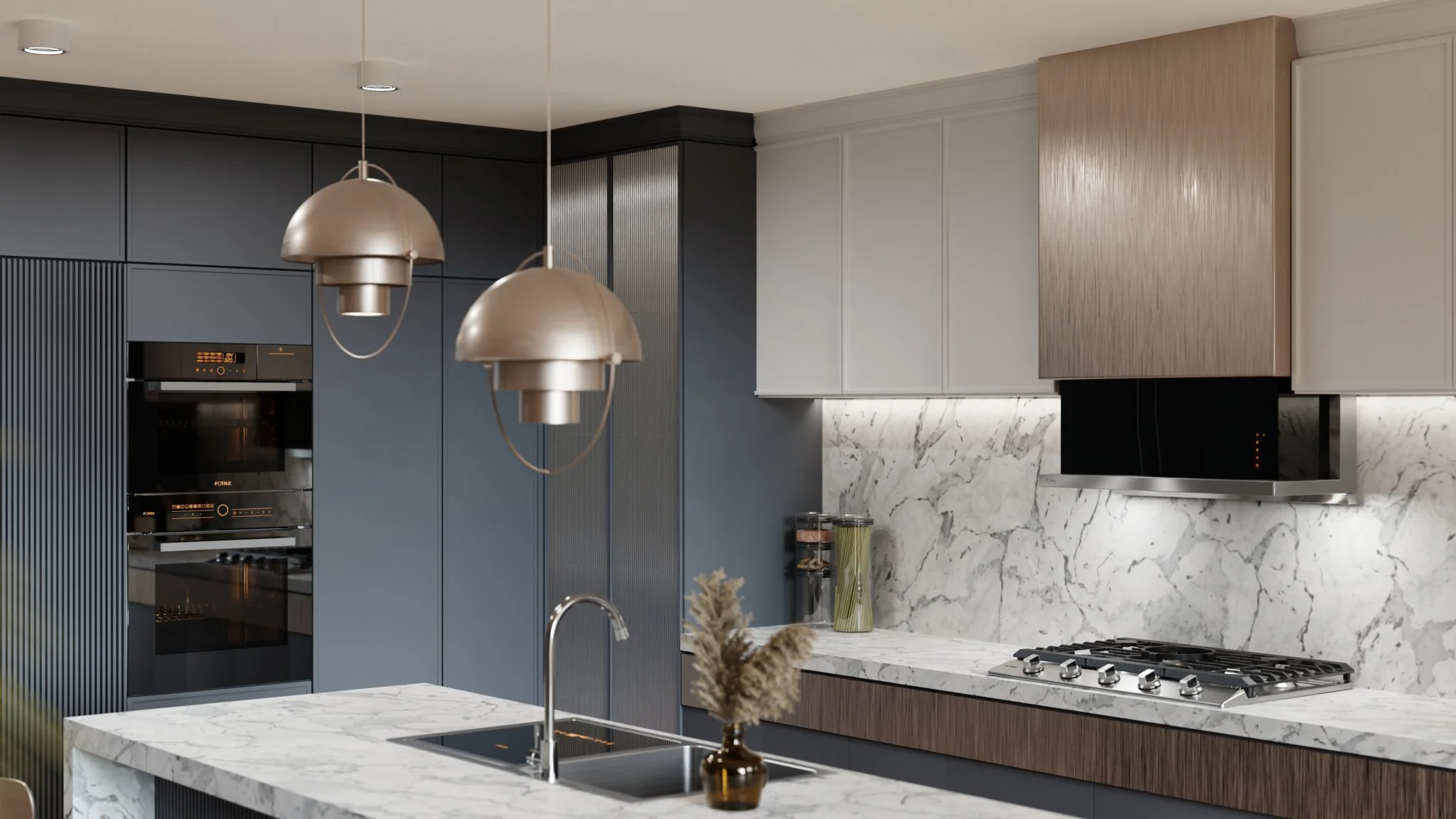

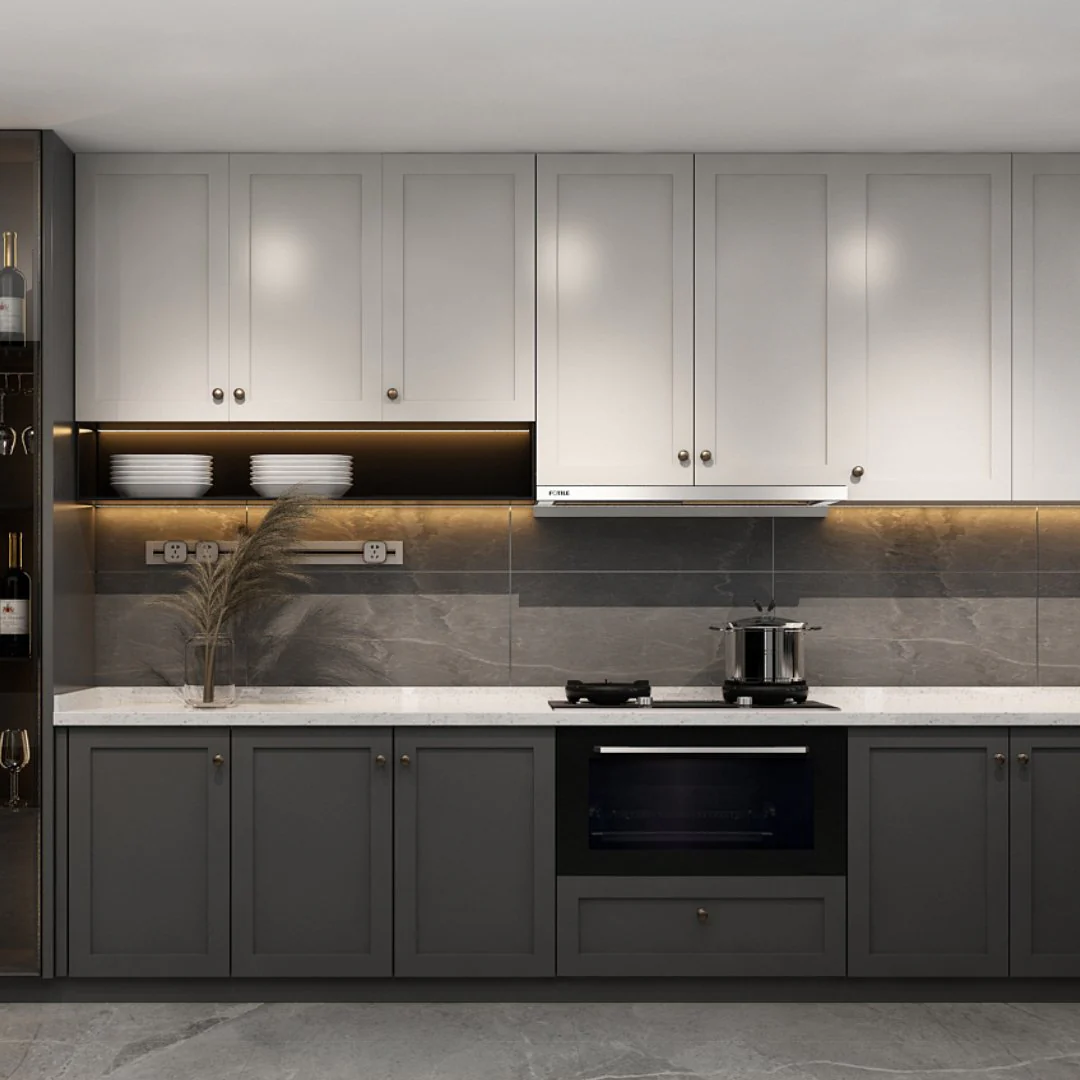

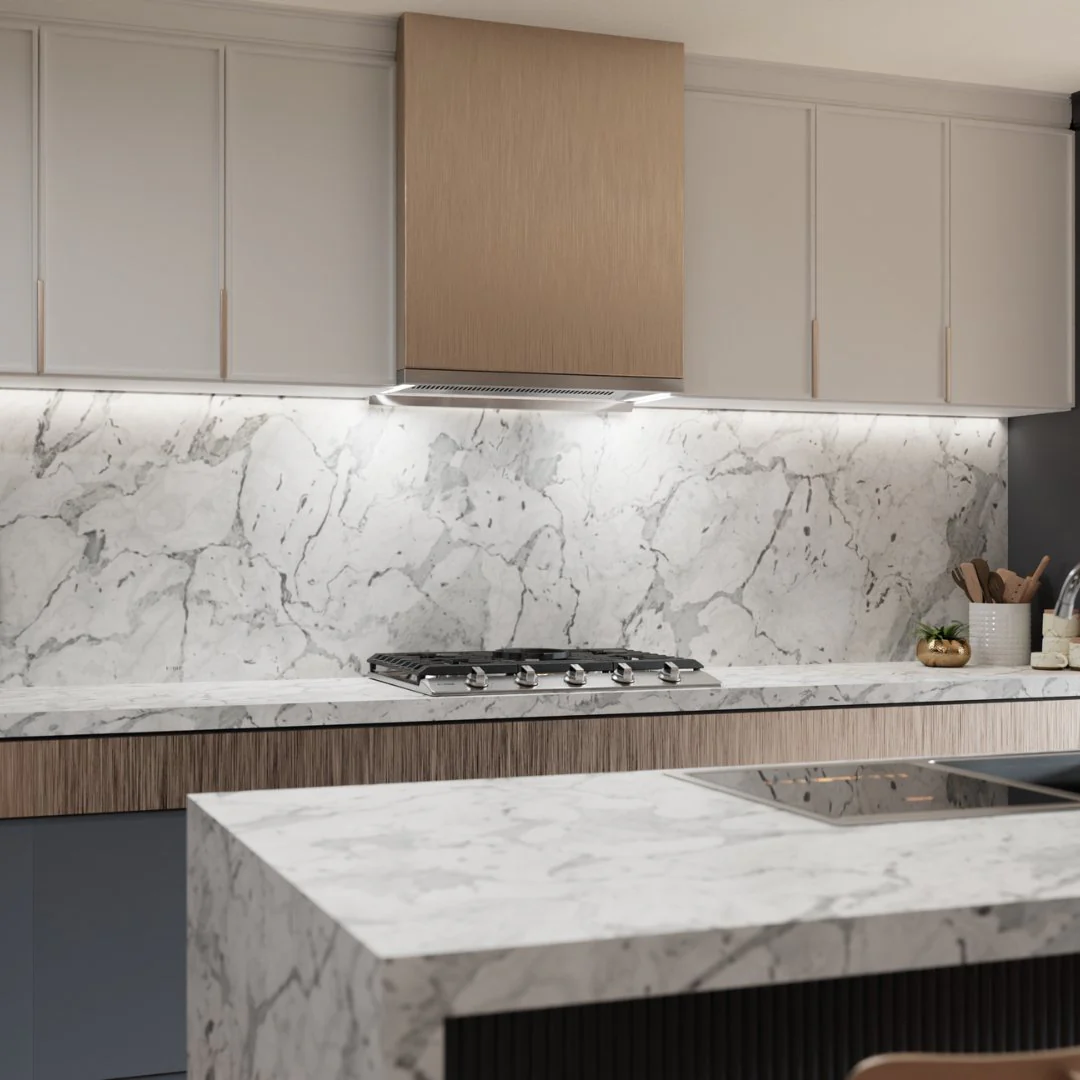

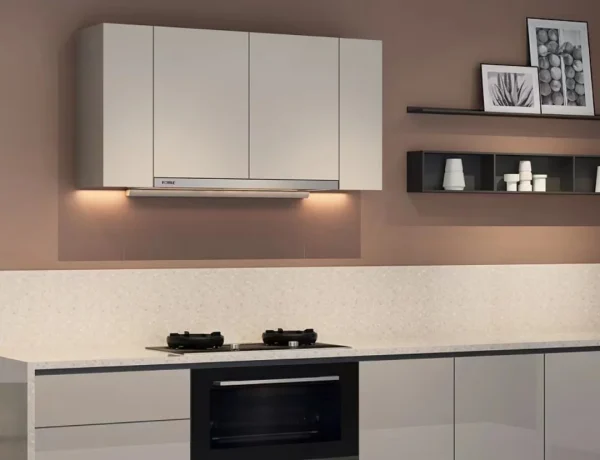

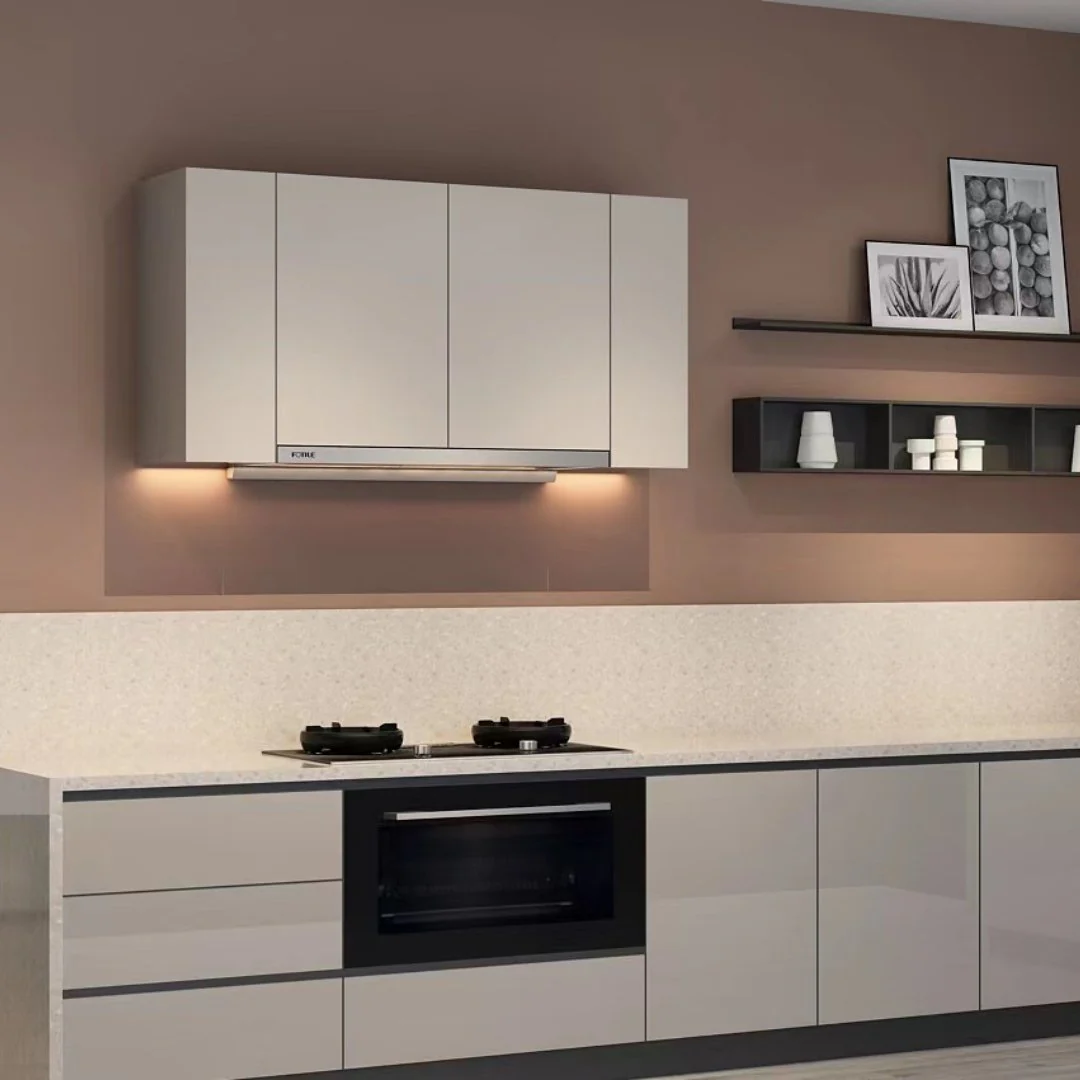

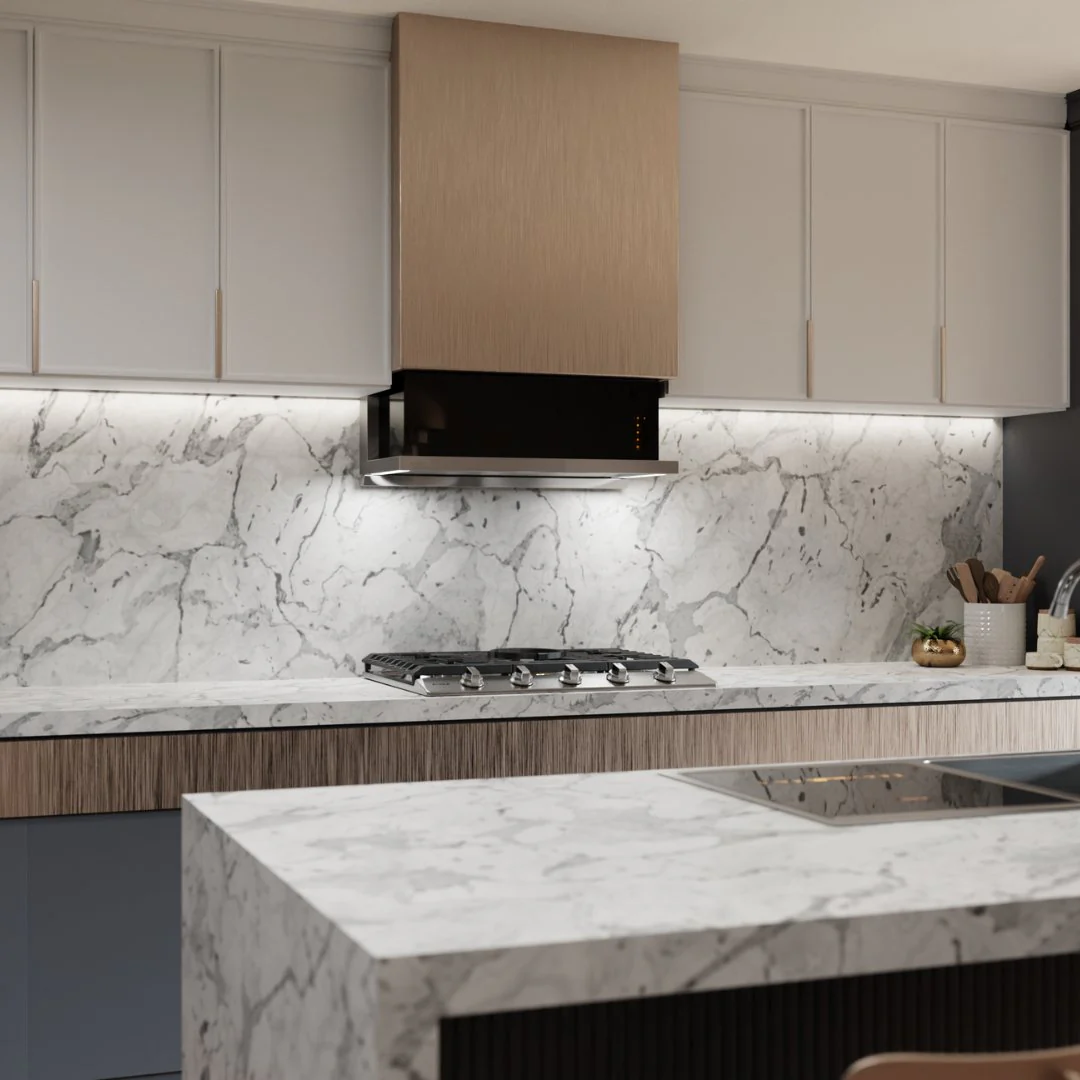

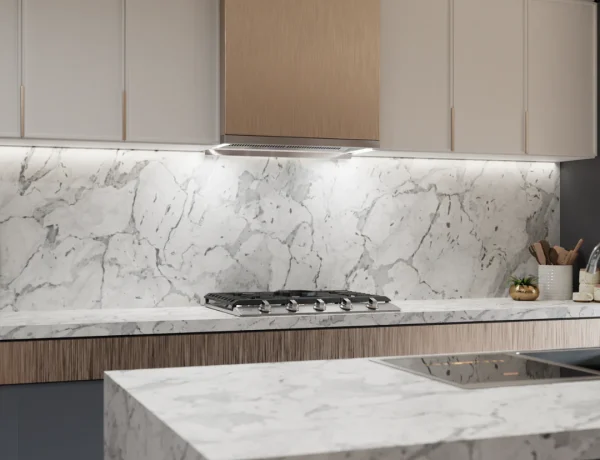

Versatile Installation
An integrated range hood that seamlessly incorporates components and appliances into its design, offering a sleek and modern aesthetic with clean lines and a cohesive appearance.
Auto-Descend & Motion Activation
The BIG3610 gracefully adjusts its Capture Shield, providing chefs greater control over their environment. This enhancement aims to promote overall health and well-being.
Activate the BIG3610 seamlessly with a simple wave motion; it will automatically lower, unveiling its robust PMSM function.
More Features

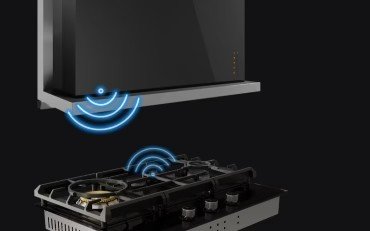

Sync Function with Select Cooktops
Simplifies cooking tasks for quicker and more convenient operation. Pairing is a seamless process, ensuring a stable connection.

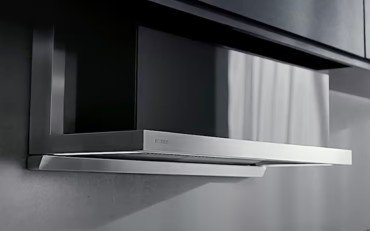

Large Capacity Oil Cup
Spacious Oil Cup for Effortless Management: Streamlined, drip-free design ensures a cleaner and easily maintainable cooking area.

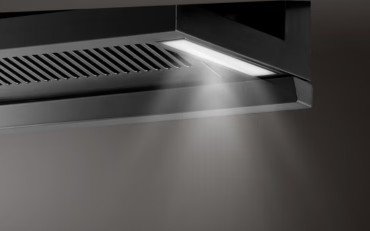

Downward Facing LED Lights
Maintain adequate illumination without causing glare or discomfort.

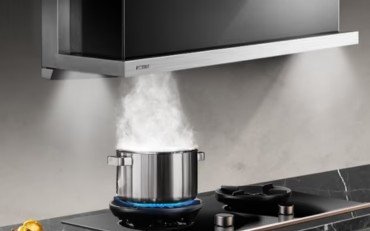

Advanced Capture Shield
Refined smoke and grease capture technology. The capture shield adjusts to the optimal height for enhanced proximity to cooking gas, ensuring a clean and healthy culinary environment.

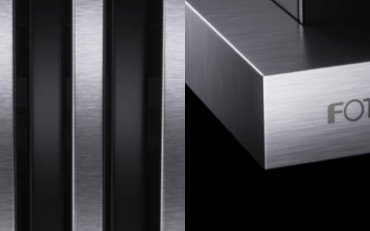

Polished Stainless Steel Design
Elevate kitchen aesthetics with a sleek and sophisticated appearance. Avoid compromises—seamless perfection for an impeccable kitchen look.

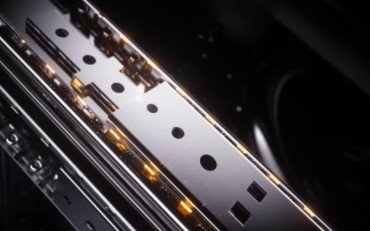

Sturdy Glide Rail
Our lifting guide is engineered to endure over 50,000 cycles. With daily use of 10 times, it reliably meets your needs for more than 13 years.
Specifications
| Model | BIG3610 |
|---|---|
| Certification | CSA, HVI, FCC, CEC |
| Product Dimensions (WxDxH)(inch) | 35 1/8" x 13 5/8" x 24 13/16" - 34 11/16" |
| Power Supply(V/Hz) | 120V/60Hz |
| Max Static Pressure(Pa) | 1000Pa |
| Speed Setting | 3 |
| Duct Size(inch) | 6" Round (Top Vented) |
ALL SPECS
| MAX. EQUIV.CFM | 1200* |
| CFM(HVI) | 244 / 444 / 642 |
| Noise Level(sones) | 3 / 4 / 8.5 |
| Noise Level(dB) | 34 / 44.1 / 52.7 |
| Illumination(W) | 3W*2 (LED) |
| Input Power | 300W |
| Motor | DC Motor |
| Oil Cup | One Oversized Oil Cup |
| Oil Filter | Removable & Dishwasher Safe |
| SynCook | Y |
| Control Type | Touch + Motion |
| Delay Shutoff | 5 min |
| Oil Filtration Rate | 95% |
| Odor Elimination Rate | 97% |
| Installation Type | Wall Mount / Insert |
| Duct Type | Vertical |
| Net Weight (lb) | 101.4lbs |
| Gross Weight (lb) | 118.4lbs |
| Packing-Box Size(WxDxH) (inch) | 41 15/16" x 29 3/4" x 20 5/16" |
| Accessories Included | Bracket, Oil Cup, Duct Kit |
| Warranty | 5-year Limited Warranty (2-year Labor, 5-year Parts, Lifetime Motor) |
| *FOTILE Equivalent CFM is a higher CFM rating due to our filterless technology that combines WhisPower Motors and Capture-Shield design. By utilizing this technology, FOTILE applies the Coanda Effect by accelerating smoke extraction and grease separation, and increasing our Capture Efficiency. This enables FOTILE to cover a larger cooktop surface (7.2 sq.ft.) and achieve a 95% oil filtration rate, and 97% odor reduction rate, keeping your kitchen smoke free and smelling fresh. |
| WARNING: This product can expose you to chemicals including vinyl chloride, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
